Overview

Product Overview

Key Features & Benefits

Future Proof 10 Gigabit Ethernet interfaces

24 10GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1062C.

Benefits: Faster LANs run on existing infrastructure.

High Speed 10 Gigabit SFP+ Uplinks

2 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Great Security Features

Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

Advanced Layer 2+ Routing Features

Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

140W PoE++ (IEEE 802.3bt Type 3) Type 3 Power (60W)

Provides power through Ethernet to the PoE enabled 10 Gigabit LAN ports. Up to 60W (PoE++ (IEEE 802.3bt Type 3)) can be delivered to the each of the first 8 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working.

Benefits: Power a large number of IP cameras, IP phones, and Wi-Fi 6 access points.

Manage Centrally or Stand-Alone

Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

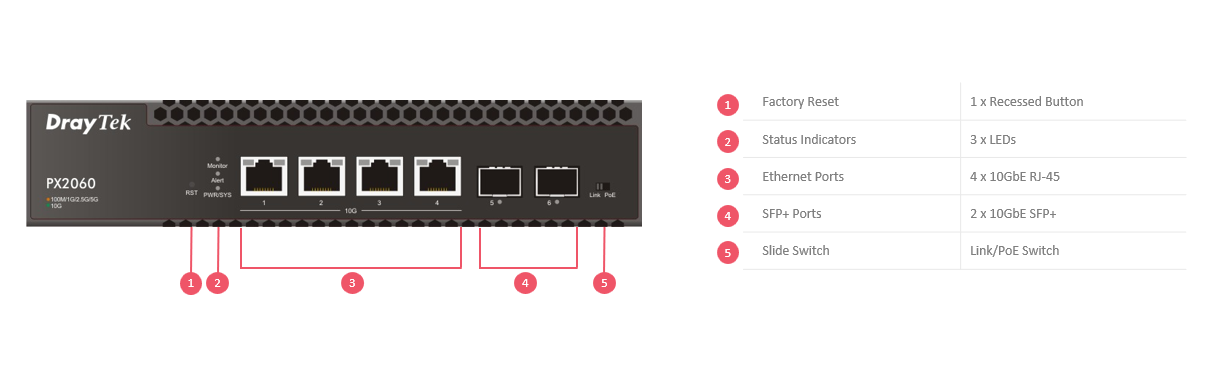

VigorSwitch PX2060

4-Port 10GbE 6 Ports 10Gbps SFP+ L2+ Managed Switch with PoE+/PoE++ (IEEE 802.3bt Type 3), and

VigorSwitch PX2060 is a 10 Gigabit L2+ Managed switch with 8 PoE++ (IEEE 802.3bt Type 3) 10GbE ports, 16 PoE+ 10GbE ports (total of 140W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PX2060 can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

Features

10 Gigabit Ethernet Ports

Increased the speed of your LANs while using existing CAT 5E or better cable infrastructure.

PoE++ (IEEE 802.3bt Type 3) (Power over Ethernet)

Deliver power and data over one ethernet cable. Split 140W budget across 8 PoE++ (IEEE 802.3bt Type 3) and 16 PoE+ ports.

Layer 2+ VLAN Routing

Use the VigorSwitch to link multiple subnets with Static Routes, VLAN Routing and integrated DHCP server.

Auto Surveillance VLAN

Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

IP Conflict Prevention

Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Access Control

VigorSwitch PX2060 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter.

10GbE SFP+ Ports

2 SFP+ ports provide fast, high bandwidth uplinks to Fibre, Switches, Servers & Network Attached Storage.

PoE Management

Schedule PoE device power. Monitor PoE device status, automatically restarting devices if they stop responding.

QoS (Quality of Service)

Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

IPv6 Ready

VigorSwitch PX2060 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

ONVIF IP Camera Management

Manage and view ONVIF capable cameras, automatically detecting their topology on the network.

Central Switch Management

Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

10GbE SFP+ Ports for High Speed Uplinks

The DrayTek VigorSwitch PX2060 has 2 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability allows you to make high bandwidth links to Network Attached Storage, Servers and other switches, to help reduce the risk of bottlenecks occurring within your network.

The SFP+ ports provide compatibility with your choice of SFP / SFP+ modules (not included) and therefore the most appropriate medium for your application.

Connect a passive Direct Attach SFP+ cable such as the DrayTek DAC-CX10-01M to the SFP+ module port of 1Gbps/10Gbps capable Network Attached Storage, Servers and Switches, for a cost effective, up to 10Gbps network link.

Advanced Layer 2+ Routing Features

The VigorSwitch PX2060 adds the Layer 3 features VLAN Routing, DHCP Server and Static Route, which allow the switch to provide routing between VLANs at full speed. The switch's Access Control List gives full control of what traffic routes between those networks.

VLAN Routing

A DrayTek VigorSwitch normally provides connectivity for multiple network segments with 802.1Q VLAN tags, which separate networks at Layer 2 (MAC level), relying on the router to connect different networks. VLAN Routing in the switch allows for Layer 3 (IP level) routing, to connect and route between different IP subnets with wire speed routing performance.

Static Route

Routing beyond the VigorSwitch PX2060, to the Internet and across VPNs is possible with Static Routes, using the switch to direct traffic to remote subnets through the correct gateway. Up to 512 static routes can be configured on the switch.

DHCP Server with Bind IP to MAC

The DrayTek VigorSwitch PX2060 has an integrated DHCP server to provide IP addressing to as many as 8 subnets on the switch, directly or with another server through DHCP Relay.

Each DHCP Pool can have as many as 1023 IP addresses, potentially serving addresses to 8000 devices, allowing for expansive networks and taking load off of the router.

With Bind IP to MAC, IP addresses can be easily reserved for individual devices such as servers, IP phones, cameras and more.

Power over Ethernet

The VigorSwitch PX2060 is a 24-port PoE (Power over Ethernet) switch, providing power on all ports to any PoE-enabled device, such as IP phones, wireless access points or IP cameras over the Ethernet cable.

As well as removing the need for local (at the desk) power supplies, making for tidier installations, PoE ensures power efficiency, providing only the power needed, as well as allowing for time schedules for powering up/down and remote rebooting.

Power is provided only when required and allows for installation of devices where there is no mains power, particularly useful for wireless access points such as the ceiling mounted VigorAP 1062C.

The VigorSwitch PX2060 has 24 PoE 10GbE ports with a power budget of up to 400 watts for all connected PoE devices. Up to 60W (802.3bt PoE++ (IEEE 802.3bt Type 3)) can be delivered to each of the first 8 dedicated Ethernet ports. The remaining Ethernet interfaces are High-Power 802.3at PoE+ and regular PoE (802.3af) capable. Each can provide up to 30 watts per port.

Power over Ethernet Management

Device Check

The Device Check feature can monitor connectivity to a device / remote IP - if it stops responding, for instance an IP camera stops transmitting - the VigorSwitch will automatically power cycle the port it's connected to, allowing it to restart and work normally again.

Scheduling

Set time schedules to turn connected PoE devices on/off at certain times of the day, for instance turning off wireless access points overnight.

Save power and prevent network access outside of the set operation times.

PoE Priority

In the event that the PoE power usage exceeds the power budget of the switch, important devices can be given priority so that they remain on. Less important devices can be turned off by the switch, to ensure constant operation of essential systems.

10G Connectivity

The X2060 series switches come with 10 Gigabit Ethernet ports that can increase throughput of your core network.

This cost affective, and future-proof option, where CAT 5E or later cabling might be challenging to upgrade, is ideal solution for existing infrastructure. Reduce the bottleneck affect by connecting Wi-Fi 6 access points, NAS drives and other demanding devices including gaming equipment to the faster 10 Gigabit ports.

Central Management

The DrayTek VigorSwitch PX2060 can operate in standalone mode and be managed through its web interface or, if you need to manage and monitor the switch remotely, or have several DrayTek VigorSwitches to administer, you can centrally manage and monitor them either with:

Feature	Description
Router - Switch Management	Manage VigorSwitches connected to a router and determine network topology at a glance
DrayTek VigorACS	Manage and Provision DrayTek VigorSwitches on any network, from anywhere
DrayTek VigorConnect	Manage and Provision VigorSwitches and VigorAPs on a single site

Managing a VigorSwitch through VigorACS

DrayTek's VigorACS central management system provides a centralised way to manage and view the status of any DrayTek Vigor router, VigorAP access point and VigorSwitch connected to the VigorACS server.

DrayTek VigorSwitch switches that support TR-069 management can be managed through DrayTek VigorACS 3 in the same way that a DrayTek Vigor router or VigorAP access point would be managed. Through VigorACS, you can view and manage; a single VigorSwitch, all switches on a site or all switches across an entire network spanning multiple sites in one place.

DrayTek VigorSwitches connected to VigorACS connect directly to the VigorACS server to be managed, the router or network that they are connected to needs no additional configuration beyond the VigorSwitch having access to the Internet (or if your VigorACS server is located across a private WAN / VPN connection, access to that network).

Dashboard view

Dashboard view displays an overview of the VigorSwitch G2500's port usage and port states:

Switch Configuration

View the configuration of a VigorSwitch and make changes to the configuration through VigorACS, then copy the settings from that switch to apply them to multiple VigorSwitch switches:

Central Switch Management with a DrayTek Vigor Router

DrayTek Vigor router Central Switch Management provisions and monitors VigorSwitch switches through a DrayTek Vigor router, with profiles that can be applied to multiple switches and VLAN configuration all handled within the router.

Central Switch Management requires firmware support on both the VigorSwitch and the DrayTek Vigor router

This can simplify the setup of multiple subnets and VLANs, without needing in-depth knowledge of VLAN tagging and reduces setup time, with the time consuming step of configuring VLANs for each port handled by the router instead.

Switch Hierarchy

The Switch Hierarchy view provides a visual overview of interconnections between DrayTek VigorSwitch switches with the devices connected to each LAN port:

Switch Management Profiles

Switch Management profiles can be used configure schedules to enable or disable ports (including PoE) and set bandwidth limits for the ports. Descriptive names can be configured on the router which can be seen from the Switch Hierarchy view:

VLAN configuration of a VigorSwitch can be provisioned from the DrayTek Vigor router, with the router automatically configuring the Uplink port and being aware of the VLAN tags that the Vigor router and the connected LAN port have available:

ONVIF IP Camera Management

The VigorSwitch PX2060 can discover, manage and configure ONVIF (Open Network Video Interface Forum) compatible IP cameras and NVR systems, allowing for easy discovery, management and troubleshooting of your connected IP cameras.

Device Management

Use the VigorSwitch to configure and manage your IP camera network; configure network & security settings, restart cameras and have the switch monitor whether cameras are responding, alerting of any issues.

Network Surveillance Topology

Simply connect ONVIF capable devices to the VigorSwitch G2540xs, Discover devices and the VigorSwitch determines the network topology of connected cameras & NVR systems.

ONVIF Camera Management - Topology view

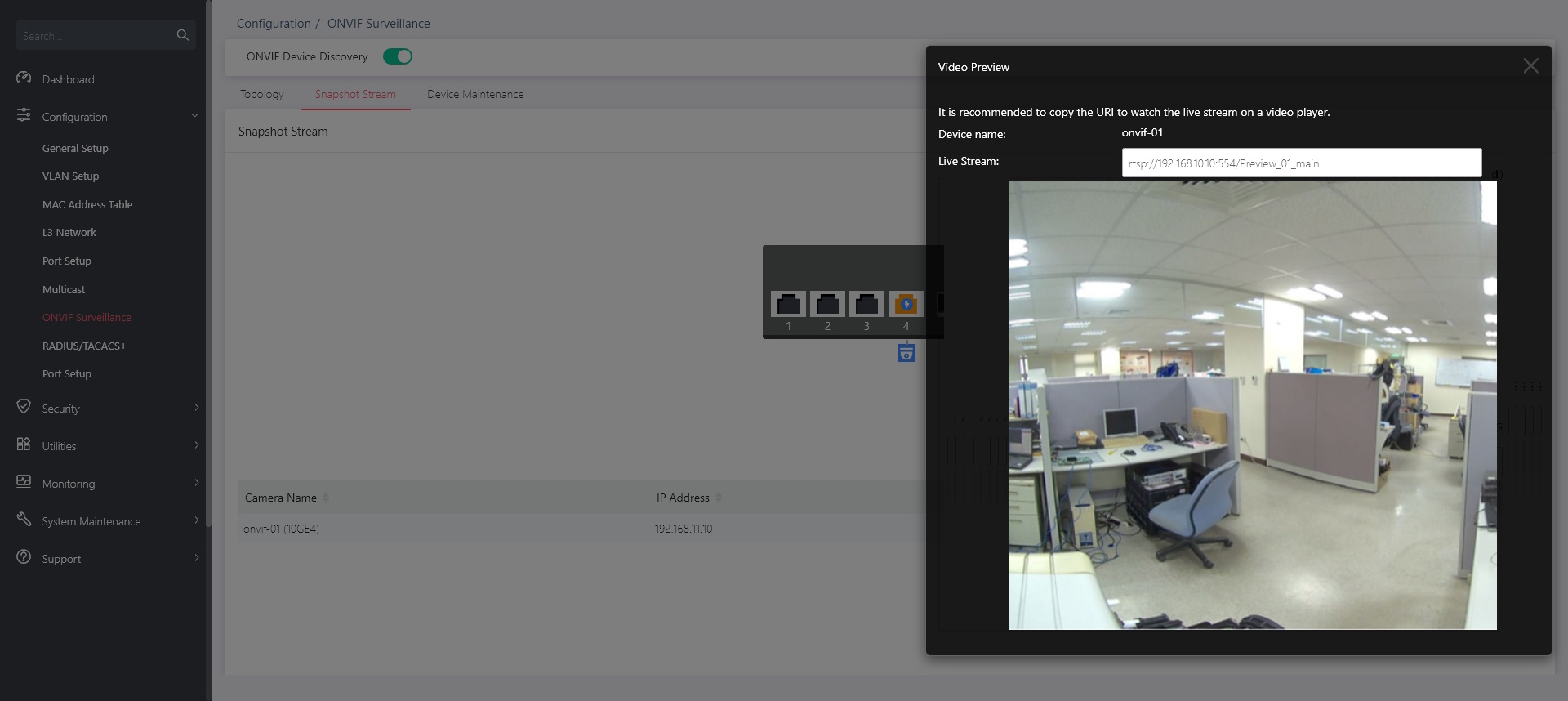

View IP Camera Output

Through the VigorSwitch web interface, you can view the video feed of connected IP cameras:

ONVIF Camera Management - Camera Display

Camera Offline Alerts with Snapshot

The VigorSwitch PX2060 can store a recent snapshot of each connected IP Camera that's ONVIF compliant.

If a camera goes offline, the VigorSwitch sends out an Email alert with the last-seen snapshot from the camera that's stopped responding. Allowing you to locate the affected camera easily and troubleshoot any problems it may have, such as a disconnected cable or faulty camera.

IP Conflict Detection & Prevention

Conflict Detection

The VigorSwitch can detect and notify an administrator when an IP conflict is detected on the network. Easily track down conflicts and take action to resolve them.

Conflict Prevention

Use DrayTek's IP Conflict Prevention to allow the switch to automatically protect against IP conflicts and ARP spoofing.

IP Conflict Prevention catalogues the current network layout, giving you the option to fix the IP address and MAC information for important network devices, such as Servers and Routers.

If another device attempts to use an IP address that's in use, the VigorSwitch blocks the misconfigured or malicious device, communicating only with the known and correct device.

DrayTek VigorSwitch IP Conflict Prevention

Quality of Service & Bandwidth Control

Quality of Service

Prioritise latency-sensitive applications on your network with Quality of Service (802.1p and DSCP) support.

Auto Voice VLAN allows the switch to automatically assign VoIP devices to a separate VLAN and prioritise their traffic.

Control throughput per-port with Rate Limiting and application specific Traffic Shaping.

Network Security and Management Features

Stay in control of what's connected to your network with Port Security and 802.1X & MAC authentication, to prevent connection of unauthorised equipment.

Protect against network issues arising from connection of unwanted devices with DHCP Snooping and IP Source Guard.

Control port access for every port on your network with the VigorSwitch Access Control List - to specifically allow or deny specified traffic types moving between ports, just like a Firewall.

Feature	Description
Access Control List	Similar to a firewall, the ACL can control which packet types (IPv4, IPv6 & MAC) are allowed to pass between ports on the switch.
AAA - 802.1X Authentication	Control access to LAN ports through a RADIUS server, which could be provided by the Vigor 2862 router on site. Authenticate and authorise network access via 802.1X, MAC address or web authentication. Track data and time usage of each user authenticated with RADIUS Accounting. Solution Focus - Wired 802.1X LAN Port Security
Management Authentication via RADIUS, TACACS+ or local accounts	Control logins to the switch management with the switch's internal user accounts or through a central RADIUS / TACACS+ server.
IGMP Snooping & Querying	Manage and control multicast IGMP traffic passing through the switch, with IGMP Snooping & Querying. With IGMP Snooping, the switch tracks IGMP traffic passing through its ports. Allowing it to limit the broadcast of multicast/IGMP packets to only the ports that have subscribed, improving overall network performance and avoiding excess network traffic. The VigorSwitch's IGMP Querier allows it to manage IGMP subscriptions on its network ports, checking which ports are members of which multicast group, if the network's router does not support multicast.
IPv6 Ready	The VigorSwitch PX2060 has extensive IPv6 support, with IPv6 ACL, MLD Snooping and IPv6 DNS Resolution. Filter IPv6 packets with the Access Control List (ACL) alongside IPv4 traffic. Use IPv6 MLD Snooping to control and more efficiently manage Multicast packets in the same way that IGMP Snooping would for IPv4 Multicast packets.
DHCP Snooping	Limit DHCP server responses to only a specified port to stop unauthorised devices from affecting network connectivity.
IP Source Guard	Protects against address spoofing by comparing packets received with either statically configured source IP addresses or addresses learned from DHCP snooping.
Link Aggregation - Port Trunking	Use two or more network links to connect the VigorSwitch PX2060 and another switch / server. Traffic can be shared between the two ports, effectively doubling the bandwidth of the uplink and providing resilience should one of the links fail. Up to 8 ports can be added to a single Link Aggregation Group, with up to 8 LAGs. Interoperability with other types and manufacturer's equipment is handled by the Link Aggregation Control Protocol (LACP).
Improved Jumbo Frame	The VigorSwitch PX2060 supports Ethernet packets up to 12 Kilobytes in size, to further improve throughput and increase the efficiency of packet transmission across your network.
sFlow	Send sFlow data from the VigorSwitch PX2060 to an sFlow Collector or VigorConnect to analyse traffic passing through the switch.
Surveillance & Voice Auto VLAN	With Voice VLAN and Surveillance VLAN, the VigorSwith PX2060 simplifies the setup of connected IP Phones and IP Cameras. Move around ports on the switch without having to manually re-configure VLAN and QoS settings each time, instead the switch will auto-assign VLAN tags and Quality of Service to IP Phones and IP Cameras, ensuring that each device remains on the correct network and that essential Voice and Video data is prioritised on the network. The switch identifies cameras and phones from their MAC address (Vendor OUI), so that when connecting up an IP Phone from Yealink for instance, the switch would configure the VLAN ID and set the QoS tag for that port. Moving the phone to a different port, the switch will ensure that the VLAN settings follow the device rather than requiring a fixed VLAN & QoS configuration per-port.
Dynamic MAC-based VLAN	Assign VLAN access to individual devices instead of ports with MAC-based VLAN, to ensure that devices are assigned to the correct network regardless of which switch port they're plugged into. With MAC-based VLAN, users can move around the office and make use of the same network resources and access through any port on the switch, without requiring manual re-configuration of VLAN settings on individual ports.

Energy Efficient Ethernet

The VigorSwitch PX2060 supports Energy Efficient Ethernet, to lower the overall power usage of the switch when ports are idle or disconnected.

The IEEE 802.3az standard allows individual Ethernet links to enter a low power state, when not transmitting or not plugged in, drawing less energy than if the ports were to run at full speed at all times.

Rack Mountable

Install the VigorSwitch on a desk, shelf or wall, or use the included rack mount fittings to install the switch in any standard 19" rack with 1U height.

Ideal for deployments in the office's comms room, where the core of the network is located.

Screenshots

DrayTek VigorSwitch PX2060 - Web Interface Screenshots

Dashboard

Dashboard view displays an overview of the VigorSwitch's port usage, port states and power usage:

Advanced Layer 2+ Features - VLAN Routing

Use the VigorSwitch as a gateway between two separate Layer 3 IP subnets with the VLAN Routing facility. Define where traffic is routed to, for access to the Internet gateway with Static Routes:

IP Camera Management of ONVIF IP Cameras

Manage and view the video feed of automatically detected ONVIF IP Cameras connected to the VigorSwitch:

vigorswitch g2280x onvif1

Port Bandwidth Usage

Display live usage data of all ports on the switch, showing the quantity of data transmitted and received on each port, with the percentage displayed along with the port's speed:
i.e. 900mbps would be displayed as 90% usage for a 1Gpbs port
50mbps would be displayed as 50% usage for a 100Mbps port

DrayTek VigorSwitch Port Bandwidth Usage

Dynamic MAC table

View devices connected to each port from the Dynamic MAC table, which displays the known MAC address and their respective VLANs for each port on the switch:

Port Bandwidth Limits

Configure bandwidth limits for each LAN port, with Egress rates controlling a client's download speed from the switch and Ingress rates controlling a client's upload speed to the switch.

VLAN Configuration

Quickly create single or multiple VLAN groups. To create multiple VLANs at once, specify multiple VLAN tags separated by commas, or as a range of VLANs (i.e. 3-5 would create VLANs 3, 4 and 5):

Apply VLAN configurations to multiple ports:

Configuration of SFP+ 10Gbps ports

Set the speed and media type of the SFP+ modules connected to the switch's six SFP+ ports.

Specifications

VigorSwitch PX2060

Product Code	EAN	Product Name	Description
VSPX2060-K	4711637180145	VigorSwitch PX2060 (UK/IE)	VigorSwitch PX2060 10Gb Ethernet PoE++ (IEEE 802.3bt Type 3) Layer 2+ Managed Switch with 4 x 10GbE ports & 2 x 10Gbps SFP+ slots

Key Specifications

24 x RJ-45 10 Gigabit Ethernet Ports (2500/1000/100/10) with PoE (8 PoE++ (IEEE 802.3bt Type 3) / 16 PoE+)
6 x SFP+ 10GbE Ports for Uplink / Fibre
PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
400-watt Power-over-Ethernet budget
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation
Console Port

Technical Specification (UK Hardware Spec.)

Physical Interfaces

24 RJ-45 Ethernet PoE (4 PoE++ (IEEE 802.3bt Type 3) / 12 PoE+) Ports – 10/100/1000/2500Mbps
2 SFP+ Ports – 1000Mbps/10Gbps
Console Port (RJ-45 physical, RS-232 electrical)
Factory Reset Button
Scan Button – NEW!
AC Power Socket
– NEW!

PoE Specification

24-ports 802.3af & 802.3at (High Power) PoE PSE
8 dedicated 802.3bt PoE++ (IEEE 802.3bt Type 3) (60W) Ethernet ports
Up to 30 watts per port for remaining Ethernet interfaces
400 Watts Total Power Budget for PoE
Auto Detection of Powered Device (PD) and Consumption Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
- Scheduling
- PoE PD Priority
- Restart PoE PD if not responding to ping
- Restart PoE IP Camera if not providing camera output

VLAN

802.1q Tag-based VLAN
Port-based and MAC-based VLANs
QinQ (Basic)
GVRP – General VLAN Registration Protocol
Up to 512 VLANs (out of 4096 VLAN IDs)
802.1v Protocol-Based VLAN
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Management VLAN
Port Isolation

QoS

Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
- 802.1p CoS
- DSCP
- CoS-DSCP
- IP Precedence ToS

Network Security

IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
AAA Authentication
MAC Authentication
Protected Port / Port Isolation
Static Port Security
Dynamic ARP Inspection
DHCP Snooping with Option 82
Loop Detection & Prevention
Access Control Lists (ACL)
- Up to 512 ACL Entries
- Source and destination MAC
- VLAN ID
- IPv4/v6 address
- Protocol
- TCP/UDP port

Spanning Tree

Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)

Link Aggregation

Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing

Networking Performance

Switching Capacity: 240 Gbps
Forwarding Rate: 178.56 Mpps at 64 bytes
MAC Addresses Supported: 32,000
Jumbo Frames up to 12KB
Packet Buffer size: 16Mbit

Multicast

Up to 256 multicast groups
Multicast Group Filtering / Throttling
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier
Multicast VLAN registration
MLD Snooping V1/V2
- Immediate Leave
- Report Suppression
- IGMP/MLD Querier

AAA

RADIUS / TACACS+ Authentication for Management
Multiple AAA Server
MAC / Inaccessible Authentication bypass
RADIUS Authentication 802.1X
- Accounting
- Guest VLAN
- Port based Authorisation
  - 802.1X Single/Multi
  - MAC-based
  - Web-based
- Attribute Assignment
  - User Privilege
  - VLAN
TACACS+ Authentication
- Port Authorisation
- Accounting

ONVIF Surveillance Management

Discovery of ONVIF-compliant IP Cameras
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
- Device Information
- Network Settings Configuration
- Time Settings
- Reboot
- Reset to Factory Default Settings
- Ping Check with Mail Alert on disconnection

Management

Web User Interface (HTTP or HTTPS)
HTTP (Non-TLS) can be disabled for increased security
Command Line Interface (CLI) via SSH/Telnet
Console Port (RJ45) for CLI management
Central Management
- VigorACS*
- VigorConnect
- Vigor Router Switch Management (requires router firmware support)
Running/Startup/Backup Configuration
sFlow
IPv4 & IPv6 Dual-Stack
LLDP(802.1ab) + MED
Firmware Upgrade/Backup by HTTP/HTTPS
Configuration Backup/Restore
Factory Default
System Reboot
Dual Firmware Image (Active & Backup Firmware)
OpenVPN Client with Certificate-based auth
SNMP v1, v2c, v3 (with Generic Traps)
RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
SNTP (Simple Network Time Protocol)

Diagnostics

Port Status & Usage display
CPU/RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
- Port Status
- Port Speed Change
- System Restart
- Device Check
- IP Conflict
- ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test

Hardware Monitor

Remote Monitoring through Web Interface & VigorACS*
Hardware Monitor Data Recording & Graphing

Layer 3 Networking Features

Static Route
VLAN Routing

IPv4 Features

DHCP Client
DNS Client
DHCP Server
- Option 82, 66, 67
- DHCP Relay
- DHCP Snooping
- DHCP IP Source Guard

IPv6 Features

Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client

General IEEE Standards Compliance

802.3af PoE
802.3at PoE+
802.3bt PoE++ (IEEE 802.3bt Type 3)
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree
802.1x Port Based Network Access Control
802.1ab Link Layer Discovery Protocol (LLDP)
802.1ad QinQ

Operating Requirements

Power Input Requirements: 100-240 @ 6A
Backup Power Input: DC 12V @ 4.8A & DC 54V @ 7.5A
Power supply: Internal
Maximum Input Power Consumption: 550W
Cooling: Fan
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 90% (non-condensing)

Physical Specifications

Dimensions: 440 x 281 x 44 mm (W x D x H)
Weight: 4.3 kg (excluding SFP modules/cables)
Rack mountable: 1U
- Brackets included for rack or wall mounting

UKCA, ROHS & CE Compliant

Warranty

2 Year Manufacturer's RTB
Software security updates
3 years after the EOL notification. Please note that this only applies to products sold in the UK
Optional VigorCare Enhanced Warranty Available
- VigorCare D3 3 Year Subscription: VCARE-D3
- VigorCare D5 5 Year Subscription: VCARE-D5

Box Contents

VigorSwitch PX2060 Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
Console Cable (RJ-45)
Quick Start Guide

* - VigorACS subscription required for cloud management.
